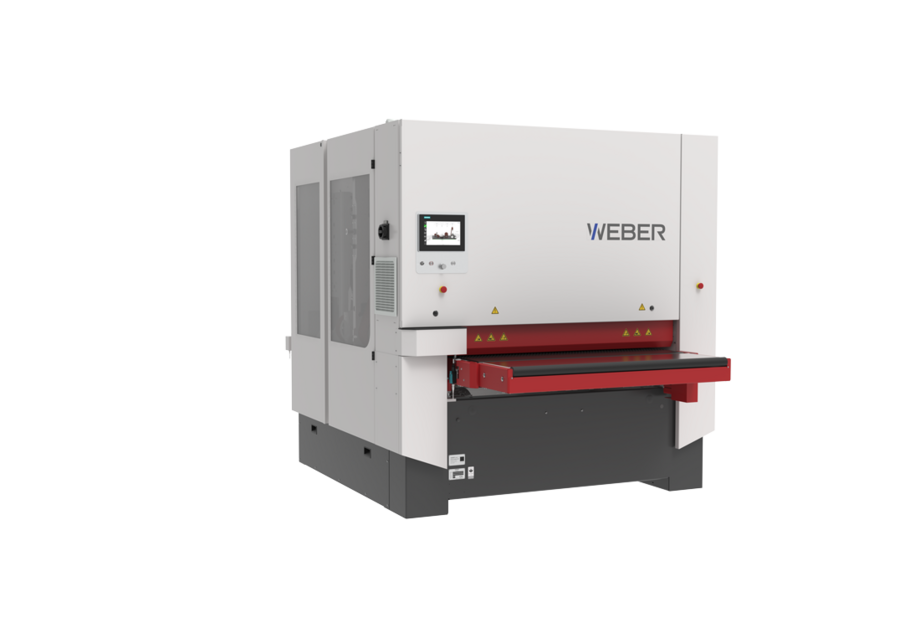

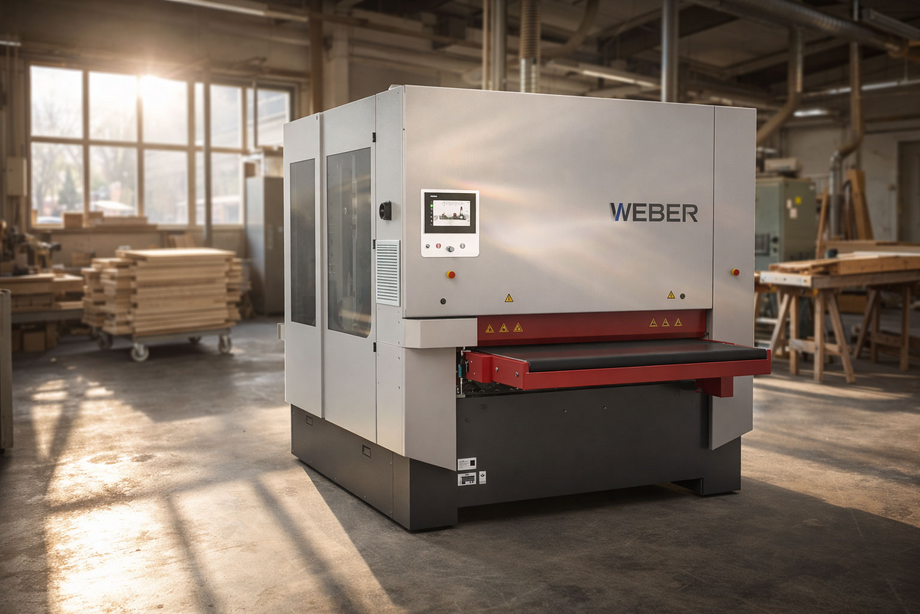

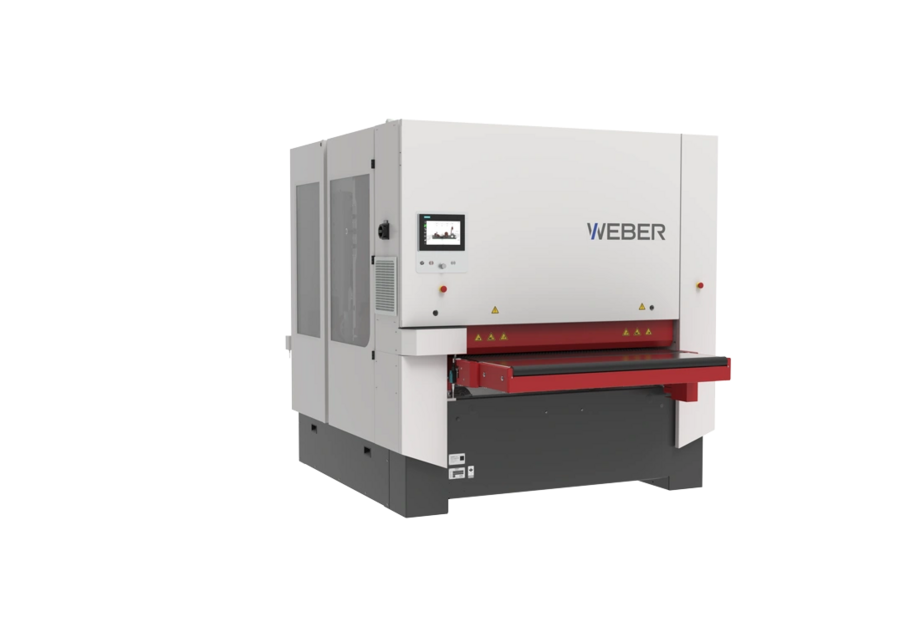

WEBER KSE
for sanding wood, veneer and varnish

The WEBER contact roller unit impresses with its exceptional precision, maximum efficiency and remarkable flexibility. Specially developed for applications in the calibration, pre-sanding and fine-sanding sectors, the unit guarantees perfect results on all types of solid wood as well as various wood-based materials.

Thanks to its robust construction, the contact roller unit is ideal for continuous operation and use in multi-shift applications. The spiral-grooved roller ensures maximum accuracy, durability and outstanding availability – all with minimal maintenance requirements.

With its versatile applications, the WEBER contact roller unit is the optimal solution for demanding woodworking processes in sanding machines and production lines.

General technical data:
+ Grooved steel or rubber contact roller
+ Drive up to 160 kW depending on the series
+ Diameter up to 450 mm depending on the series
+ Electric roller adjustment and positioning
+ Programme-controlled grit compensation

General features:
+ Suitable for use with various belts
+ Effective for pre-sanding
+ Calibration possible within a 0.01 mm range

The WEBER cushion unit is the ideal solution for the gentle and precise finishing of delicate wooden surfaces. Thanks to the grinding station’s exceptional adaptability, the unit achieves first-class results, even on challenging workpieces such as veneers, profiled surfaces or coated materials.

General technical data:
+ grooved steel or rubber contact roller
+ drive up to 110 kW depending on the series
+ diameter up to 210 mm depending on the series
+ electric roller adjustment and positioning

The WEBER combination unit combines the power of a grinding roller with the flexibility of a grinding beam in a single grinding station. This clever combination enables both precise material removal and a particularly fine surface finish – ideal for applications with high demands on dimensional accuracy and surface quality.

General technical data:
+ Grooved steel or rubber contact roller, ø130 mm
+ Drive power up to 19 kW depending on the series
+ Adjustment accuracy: 0.02 mm
+ Direction of rotation: synchronous/counter-rotating

General features:
+ Calibration and finishing in sequence
+ For sensitive surfaces
+ Variable grinding patterns
+ ISA pressure bar system

The WEBER cross-belt unit sets new standards in wood surface finishing. By specifically processing the surface across the grain, it delivers outstanding sanding quality and creates the ideal conditions for subsequent finishing processes such as staining, varnishing or coating.

General technical data:
+ Drive: 15 kW
+ Pressure lamella belt with felt and graphite
+ ISD segmented pressure beam

General features:
+ High-quality sanding finish
+ Surface sanding for uniform lacquering
+ Stepless speed adjustment

The WEBER P2 planetary head is the ideal solution for consistent and precise edge rounding and the machining of wooden surfaces. With its unique, patented technology, the P2 delivers perfect results on a wide variety of workpiece geometries and sets new standards in industrial woodworking.

The WEBER “B” brushing unit is a versatile grinding module used for texturing, fine finishing, dust removal or stripping of wood and wood-based materials. Thanks to its flexible adaptability and range of brush types, it is ideally suited to numerous applications – from aesthetic surface finishing to functional post-processing.

General technical data:
+ Drive up to 24 kW
+ Cutting speed 2–10 m/s
+ Display accuracy 1/10 mm

General features:
+ Adjustable oscillation
+ Motorised roller lift
